PPGI Corrugated Steel Sheet | Galvanized Coating, 0.2-1.5mm Thick,
ASTM A755

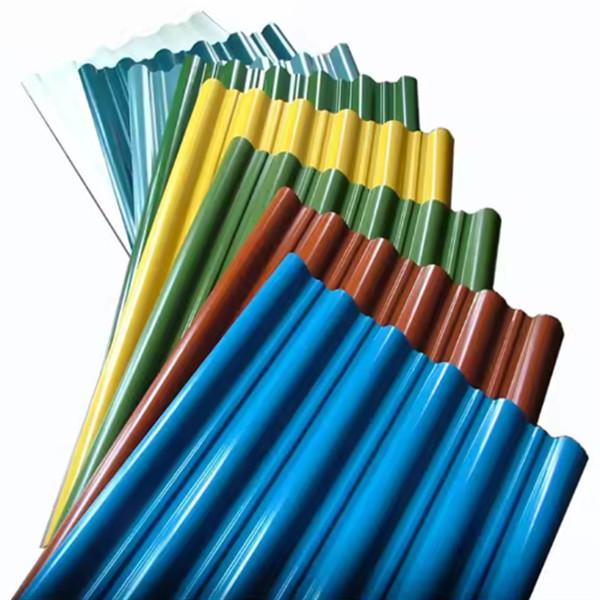

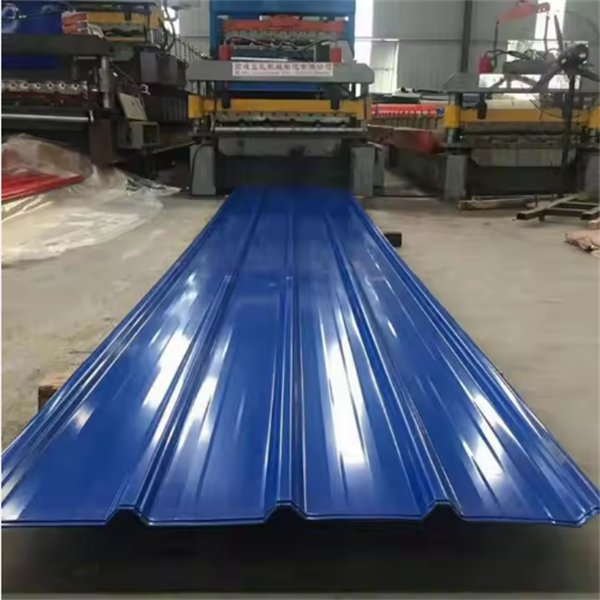

PPGI Corrugated Steel Sheets are engineered for superior weather resistance and structural
durability, combining a hot-dip galvanized base (Z60–Z275) with a high-performance polyester/PVDF coating. Compliant with ASTM A755 standards, these sheets are ideal for roofing, cladding, and
agricultural buildings, offering a lifespan of 20–30 years even in
coastal or high-UV environments. Available in 0.2–1.5mm thicknesses and customizable corrugation profiles, they deliver unmatched
strength, aesthetics, and cost efficiency.
Key Benefits:
- Dual-Layer Protection: Galvanized base + organic coating for 1,500+ hours salt spray
resistance (ISO 9227).
- Lightweight & Durable: Corrugated design enhances load-bearing capacity while reducing
material weight by 25%.
- Aesthetic Versatility: 150+ RAL colors, woodgrain textures, or anti-scratch matte
finishes.
- Global Compliance: ASTM A755, EN 10169, JIS G3312, and ISO 1461 certified.
- Easy Installation: Pre-fabricated corrugations reduce on-site labor costs by 30%.
- Eco-Friendly: 75% recycled steel content, RoHS-compliant, and low-VOC coatings.
2. Technical Specifications
| Parameter | Details |
|---|
| Base Material | Hot-Dip Galvanized Steel (C: 0.02–0.12%, Mn: 0.15–0.60%, P ≤0.04%,
S ≤0.03%) |
| Coating Structure | Z60–Z275 Zinc Layer + Polyester/PVDF Topcoat (15–25µm) |
| Grades | ASTM A755 (SS Grade 33–80), EN 10169 (DX51D+AZ), JIS G3312 (SGCC) |
| Thickness Range | 0.2mm–1.5mm (±0.03mm tolerance) |
| Corrugation Profiles | Trapezoidal, Sinusoidal, or Custom (Height: 15–50mm, Pitch:
75–200mm) |
| Mechanical Properties | Tensile Strength: 340–550 MPa, Yield Strength: 230–450 MPa,
Elongation: 12–25% |
| Surface Properties | Gloss: 20–80 GU, roughness Ra ≤0.6µm, pencil hardness ≥1H |
| Certifications | ASTM A755, ISO 1461, CE Mark, RoHS, TUV Rheinland, LEED |
| Key Applications | Farm roofing, industrial warehouses, cold storage walls, and solar
carports |
3. Advantages of Importing Our PPGI Corrugated Sheets
Competitive Edge:
- Cost Savings: 20–30% cheaper than North American/European suppliers with identical ASTM A755
compliance.
- Fast Production: 10–15 days lead time for 50-ton orders, including custom profiles
and colors.
- Quality Assurance: Third-party tested for coating adhesion (ISO 2409), impact
resistance (ASTM D2794), and bendability (0T–2T).
- Sustainable Packaging: Recyclable PE film + wooden pallets to prevent transit damage.
- Technical Support: Free wind load calculations, CAD drawings, and installation
guides.
- Warranty: 15-year warranty against corrosion and color fading.
4. Versatile Industrial & Agricultural Applications
| Industry | Use Cases |
|---|
| Agriculture | Livestock barns, grain storage roofs, and greenhouse structures. |
| Industrial | Factory roofing, chemical plant cladding, and warehouse partitions. |
| Commercial | Retail store canopies, parking lot shelters, and gas station roofs. |
| Renewable Energy | Solar farm mounting systems, biogas plant covers. |
| Residential | Eco-home roofing, garage extensions, and garden sheds. |
| Public Infrastructure | Bus stops, sports pavilions, and emergency housing. |
| Cold Chain | Refrigerated storage units, meat processing facility walls. |
FAQ
1. Who are we?
Our headquarters is located in Anhui, China. Since 2010, we have
sold to the domestic market (30.00%), South Asia (10.00%), South
America (10.00%), North America (10.00%), Southeast Asia (10.00%),
and Africa (5.00%) , Northern Europe (5.00%), Central America
(5.00%), Middle East (5.00%), Western Europe (3.00%), Oceania
(3.00%), Southern Europe (2.00%), East Asia (1.00%), Eastern Europe
(1.00%) . There are about 11-50 people in total in our factory.
2. How do we ensure quality?
There are always pre-production samples before mass production;
Always conduct final inspection before shipment;
3. What can you buy from us?
PPGI Steel Sheet, stainless steel pipe, stainless steel coil,
stainless steel strip, wear-resistant plate, galvanized steel plate
4. Why should you buy from us instead of other suppliers?
The company introduces advanced technology and equipment, and its
products are exported to Western countries such as the United
Kingdom and the United States. It has strong technical force and
experienced technical and management personnel.
5. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF, EXW;
Accepted payment currencies: USD;
Accepted payment methods: T/T, L/C, cash;
Languages spoken: English, Chinese
