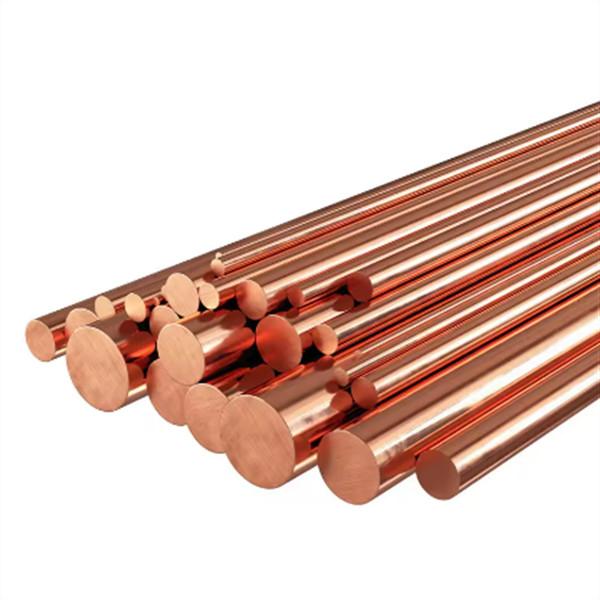

Lead-Free Copper Round Rod (C10200) 8mm-100mm Precision Ground
Surface
Lead-Free C10200 Copper Round Rods are engineered for industries requiring ultra-precision, eco-compliance, and exceptional electrical/thermal performance. Made from 99.95% oxygen-free copper (C10200) with a precision-ground surface finish (Ra ≤0.4µm), these rods
comply with RoHS, REACH, and ISO 9001 standards, making them ideal for medical devices, food-grade machinery, and
semiconductor equipment. Available in 8mm–100mm diameters, they deliver zero lead contamination and superior machinability
for critical applications.
Key Advantages:
- Zero Lead Content: 100% Pb-free (C10200) for FDA-compliant food/medical use.
- High-Purity Material: Cu ≥99.95%, O ≤0.001%, ensuring minimal electrical resistance.
- Precision Ground Finish: Tight tolerances (±0.02mm) for CNC, EDM, and Swiss machining.
- Corrosion Resistance: Resists oxidation and tarnishing in humid/sterile environments.
- Global Compliance: Certified for RoHS, REACH, NSF/ANSI 51, and EU MDR (Medical
Device Regulation).
- Custom Solutions: Cut-to-length (50mm–3m), electropolished, or passivated surfaces.
2. Technical Specifications
| Parameter | Details |
|---|
| Material | C10200 Oxygen-Free Copper (Cu ≥99.95%, O ≤0.001%, impurities
≤0.03%) |
| Standards | ASTM B170, EN 13600 (CW008A), JIS H3510 (C1020), ISO 1337 |
| Diameter Range | 8mm–100mm (±0.02mm for ≤50mm, ±0.03mm for >50mm) |
| Mechanical Properties | Tensile Strength: 200–340 MPa, Hardness: 40–90 HV, Elongation:
25–45% |
| Electrical Conductivity | 58.5–59.5 MS/m (101–103% IACS) at 20°C |
| Thermal Conductivity | 391 W/m·K at 20°C |
| Surface Finish | Precision ground (Ra ≤0.4µm), electropolished (Ra ≤0.1µm), or
passivated |
| Certifications | RoHS, REACH, ISO 13485 (medical), NSF/ANSI 51 (food safety), TÜV
SÜD |
| Key Applications | MRI machine components, semiconductor wafer chucks, food processing
valves, and lab equipment |
3. Why Import Our C10200 Copper Rods?
Competitive Benefits:
- Cost Efficiency: 20–30% cheaper than U.S./EU suppliers with identical certifications.
- Fast Turnaround: 7-day lead time for custom lengths + air freight priority
(DHL/FedEx).
- Zero-Defect Quality: 100% laser micrometer inspection + eddy-current testing for
purity.
- Customization: Micro-grooved surfaces, vacuum-grade packaging, and sterile
cleanroom delivery.
- Global Logistics: Pre-stocked in Frankfurt, Tokyo, and Dallas hubs for 48-hour
regional dispatch.
- Technical Support: Free material certifications, FDA compliance reports, and CAD/CAM
files.
- Warranty: 24-month performance guarantee + 90-day returns for
non-compliance.
4. High-Precision Industrial Applications
| Industry | Use Cases |
|---|
| Medical Devices | Surgical robot arms, X-ray tube housings, and sterile IV pump
components. |
| Semiconductor | EUV lithography stages, wafer handling arms, and vacuum chamber
feedthroughs. |
| Food & Beverage | Dairy processing valves, brewery heat exchangers, and bottling
machine shafts. |
| Pharmaceutical | Tablet press rams, bioreactor stirrers, and cleanroom conveyor
rollers. |
| Electronics | High-frequency connectors, RF waveguide components, and circuit
board plating anodes. |
| Aerospace | Satellite cryogenic cooling rods, avionics heat sinks, and fuel
system sensors. |
| Renewable Energy | Fuel cell bipolar plates, solar cell sputtering targets, and
hydrogen valve stems. |
