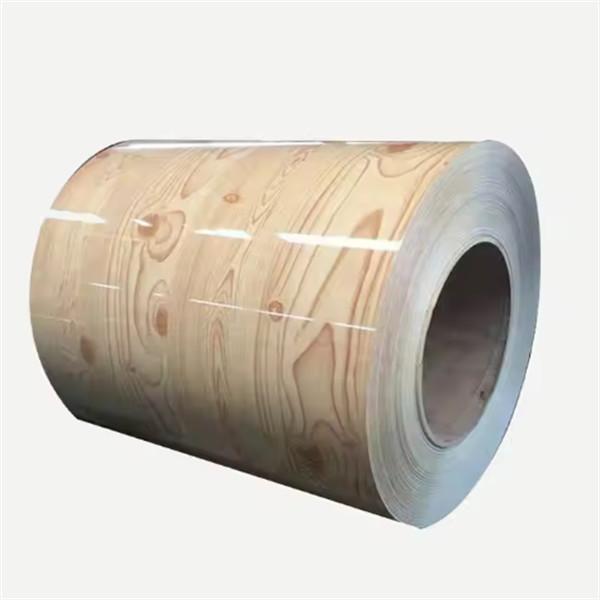

PPGI Steel Coil With PE/PVDF Coating 0.15-1.5mm Thickness Custom
Sizes Available
PE/PVDF Coated PPGI Steel Coils are precision-engineered for industries requiring ultra-thin yet durable materials with exceptional surface finishes. Available in 0.15–1.5mm thicknesses and customizable widths (200–1,500mm), these coils are ideal for
lightweight roofing, precision appliances, and decorative
architectural elements. Featuring polyester (PE) or polyvinylidene fluoride (PVDF) coatings, they comply with ASTM A755, EN 10169, and JIS G3312 standards, offering flexibility for both cost-sensitive projects and
high-end UV-resistant applications.
Key Features:
- Ultra-Thin Versatility: 0.15mm for electronics/consumer goods to 1.5mm for structural
cladding.
- Coating Excellence:
- PE Coating: 20–25µm thickness, 100+ RAL colors, ideal for indoor use.
- PVDF Coating: 25–35µm thickness, superior UV/chemical resistance (25+ years
outdoor).
- Custom Sizing: Tailored widths/lengths (e.g., 200mm strips for LED strips,
1,500mm roofing panels).
- Corrosion Resistance: Z60–Z275 galvanized base + chromium-free primer for C3–C5
environments.
- Eco-Compliance: RoHS, REACH, and Green Label certified for sustainable
manufacturing.
- Fast Processing: Pre-punched, slit, or embossed options to reduce fabrication time
by 50%.
2. Technical Specifications
| Parameter | Details |
|---|
| Base Material | Low-Carbon Steel (C: ≤0.06%, Mn: 0.10–0.45%, Si: ≤0.03%, P/S:
≤0.02%) |
| Coating Layers | Hot-Dip Galvanized (Z60–Z275) + Primer + PE/PVDF Topcoat (20–35µm) |
| Grades | ASTM A755 (SS Grade 33), EN 10169 (DX51D+Z), JIS G3312 (SGH340) |
| Thickness Range | 0.15mm–1.5mm (±0.02mm for ≤0.5mm, ±0.03mm for >0.5mm) |
| Coil Dimensions | Width: 200–1,500mm (±0.5mm), ID: 508/610mm, Max OD: 1,500mm |
| Mechanical Properties | Tensile Strength: 280–550 MPa, Yield Strength: 200–420 MPa,
Elongation: 20–35% |
| Surface Properties | Gloss: PE (40–80 GU), PVDF (70–90 GU), adhesion (ASTM D3359): 5B |
| Certifications | ASTM A755, AAMA 2605 (PVDF), ISO 1461, SGS, RoHS, and TÜV Rheinland |
| Key Applications | Appliance casings, LED light housings, office partitions, and
signage boards |
3. Why Import Our Custom-Sized PPGI Coils?
Competitive Advantages:
- Affordability: 30–40% lower costs than European suppliers for PVDF-coated coils.
- Rapid Customization: 7-day lead time for non-standard sizes (e.g., 200mm x 0.3mm
strips).
- Zero-Defect Guarantee: 100% automated optical inspection (AOI) for coating uniformity.
- Specialized Solutions: Anti-static coatings for electronics, antimicrobial finishes for
healthcare.
- Global Logistics: Pre-stocked in Dubai, Houston, and Rotterdam hubs for 5-day
regional delivery.
- Technical Partnership: Free material samples, DFM (Design for Manufacturing) reports,
and CAD support.
- Warranty: 10-year PE / 20-year PVDF coating warranty + 24-month corrosion
protection.
4. Industry-Specific Applications
| Industry | Use Cases |
|---|
| Consumer Electronics | Laptop bases, smartphone backplates, and smartwatch charger
housings. |
| Home Appliances | Microwave oven panels, refrigerator liners, and air fryer
exteriors. |
| Architecture & Design | Decorative wall panels, suspended ceilings, and modular furniture. |
| Advertising | Durable outdoor billboards, lightbox signages, and exhibition
displays. |
| Automotive | Interior trim parts, EV charging station covers, and motorcycle
fairings. |
| Renewable Energy | Solar panel backing sheets, wind turbine sensor housings. |
| Medical Devices | MRI machine covers, surgical instrument trays, and dental equipment
casings. |
FAQ
1. Who are we?
Our headquarters is located in Anhui, China. Since 2010, we have
sold to the domestic market (30.00%), South Asia (10.00%), South
America (10.00%), North America (10.00%), Southeast Asia (10.00%),
and Africa (5.00%) , Northern Europe (5.00%), Central America
(5.00%), Middle East (5.00%), Western Europe (3.00%), Oceania
(3.00%), Southern Europe (2.00%), East Asia (1.00%), Eastern Europe
(1.00%) . There are about 11-50 people in total in our factory.
2. How do we ensure quality?
There are always pre-production samples before mass production;
Always conduct final inspection before shipment;
3. What can you buy from us?
PPGI Steel Coil,PPGI Steel Sheet, stainless steel pipe, stainless
steel coil, stainless steel strip, wear-resistant plate, galvanized
steel plate
4. Why should you buy from us instead of other suppliers?
The company introduces advanced technology and equipment, and its
products are exported to Western countries such as the United
Kingdom and the United States. It has strong technical force and
experienced technical and management personnel.
5. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF, EXW;
Accepted payment currencies: USD;
Accepted payment methods: T/T, L/C, cash;
Languages spoken: English, Chinese
