TP310H Stainless Steel High Pressure Pipe SA213 16mm Thick, Water
Treatment

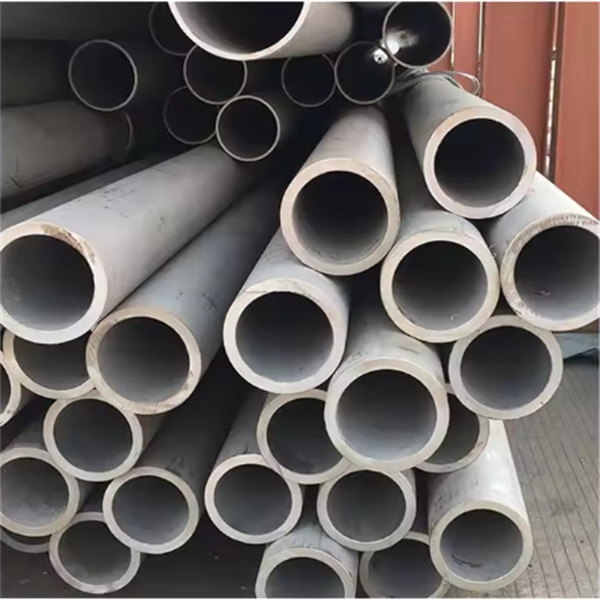

TP310H Stainless Steel High-Pressure Pipes (16mm Thick) by Jiangsu China Steel Union Industrial Co., Ltd are engineered for demanding industrial water treatment,
desalination, and high-temperature fluid transport. Compliant with
ASTM A213/SA213, these pipes leverage high chromium (24–26%) and nickel (19–22%)
content to resist oxidation, chloride-induced corrosion, and
scaling in aggressive water chemistry. The 16mm wall thickness
ensures structural integrity under pressures up to 500 bar, while seamless manufacturing eliminates weak points for long-term
reliability in reverse osmosis (RO) systems, cooling towers, and
high-purity water loops. Ideal for temperatures up to 1,100°C, these pipes are solution-annealed for stability in thermal
cycling environments.
2. Detailed Specifications
| Parameter | Details |
|---|
| Material | TP310H Stainless Steel (UNS S31009 / ASTM A213) |
| Element Composition | Cr: 24–26%, Ni: 19–22%, C: 0.04–0.10%, Mn: ≤2%, Si: ≤1.5%, P:
≤0.045%, S: ≤0.03%, Fe: Balance |
| Dimensions | OD: 20–300mm (±1%), Wall Thickness: 16mm (±0.5mm), Length: 6–12m
(Customizable) |
| Certifications | ASTM A213/SA213, EN 10216-5, PED 2014/68/EU, ISO 9001:2015, TÜV
Rheinland |
| Mechanical Properties | Tensile Strength: ≥515 MPa
Yield Strength: ≥205 MPa
Elongation: ≥35%
Hardness: ≤90 HRB |
| Temperature Range | Continuous: -20°C to 1,100°C
Intermittent: Up to 1,150°C (Oxidation Resistance) |
| Surface Finish | Annealed & Pickled, Shot-Blasted, or Ceramic-Coated for Enhanced
Corrosion Resistance |
| Applications | High-pressure RO feed lines, industrial cooling circuits,
wastewater evaporators, brine heaters |
3. Advantages of Importing Our Product
- Superior Corrosion Resistance: TP310H resists pitting and stress corrosion cracking (SCC) in
chloride-rich water.
- Cost Efficiency: 25% lower pricing than EU/U.S. suppliers, leveraging Jiangsu’s
vertical integration from alloy production to precision machining.
- Fast Turnaround: 15,000-ton annual capacity; 12-day lead time for ASTM
A213-certified orders from Shanghai or Dubai hubs.
- Quality Assurance: 100% PMI testing, ultrasonic inspection (UT), and EN 10204 3.1
mill certificates.
- Custom Solutions: Pre-insulated pipes, flanged connections, and anti-scaling
coatings tailored to water treatment needs.
4. Key Applications
- Water Desalination: High-pressure seawater intake lines, brine discharge pipes, and
RO membrane housings.
- Industrial Cooling: Cooling tower feed lines, condenser tubes, and thermal fluid
circuits.
- Wastewater Treatment: High-temperature evaporators, sludge incineration ducts, and
chemical dosing systems.
- Power Plant Water Systems: Demineralized water (DM) distribution, boiler feedwater
preheaters, and blowdown lines.
- Chemical Processing: Acid recovery systems, caustic soda transfer pipes, and solvent
recycling units.
Jiangsu China Steel Union Industrial Co., Ltd delivers ASTM A213-certified TP310H stainless steel pipes that
redefine durability and efficiency in water treatment and
industrial fluid systems, offering unmatched performance for global
clients in harsh operational environments.
FAQ
Q1. Where is your factory ?
A1: Our company's processing center is located in Wuxi, Jiangsu,
China.
Which is well equipped with kinds of machines, such as laser
cutting machine,mirror polishing machine and so on.We can provide a
wide range of personalized services according to the customers'
needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil,
round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party
Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more
competitive prices and best after-dales service than other
stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, , UK,
Kuwait, Egypt, , Turkey, Jordan,
India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
