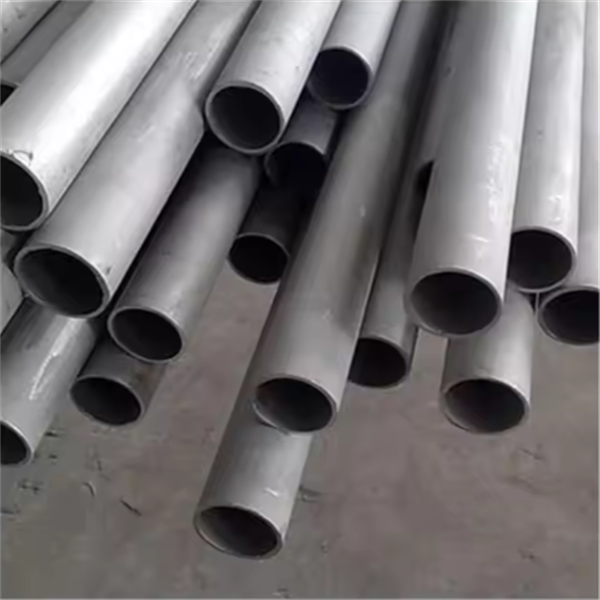

Duplex 2205 High Pressure Pipe 2"X10ft, ASTM A790, Acid-Resistant,
Chemical Processing
Duplex 2205 High-Pressure Pipes (2"x10ft) by Jiangsu China Steel Union Industrial Co., Ltd are engineered for aggressive chemical and petrochemical
environments requiring exceptional corrosion resistance and
structural strength. Compliant with ASTM A790, these seamless duplex stainless steel pipes combine austenitic
and ferritic microstructures, delivering double the yield strength
of standard 316L while resisting pitting, stress corrosion cracking
(SCC), and sulfuric/chloride-induced degradation. The 2" diameter
and 10ft length optimize high-pressure fluid transport in acid
processing, refinery pipelines, and heat exchangers. Ideal for
temperatures up to 300°C, these pipes maintain integrity in acidic media (e.g., H₂SO₄, HCl)
and high-salinity conditions, making them indispensable for
chemical reactors and offshore platforms.
2. Detailed Specifications
| Parameter | Details |
|---|
| Material | Duplex 2205 (UNS S32205 / ASTM A790) |
| Element Composition | Cr: 22–23%, Ni: 4.5–6.5%, Mo: 3–3.5%, N: 0.14–0.2%, Mn: ≤2%, C:
≤0.03%, Si: ≤1%, Fe: Balance |
| Dimensions | OD: 2" (60.3mm), Wall Thickness: 5.54mm (Sch80), Length: 10ft
(3.05m), Tolerance: ±0.5mm |
| Certifications | ASTM A790, NACE MR0175/ISO 15156, PED 2014/68/EU, EN 10216-5, TÜV
Rheinland |
| Mechanical Properties | Tensile Strength: ≥620 MPa
Yield Strength: ≥450 MPa
Elongation: ≥25%
Hardness: 290–330 HV |
| Pressure Rating | 1,200 psi at 150°C (Hydrostatic Test: 180 bar) |
| Surface Finish | Pickled & Passivated (ASTM A967), Shot-Blasted, or 3LPE Coated for
Acidic Media |
| Applications | Sulfuric acid reactors, alkylation units, seawater cooling systems,
sour gas pipelines |
3. Advantages of Importing Our Product
- Superior Acid Resistance: PREN ≥34 ensures longevity in sulfuric, hydrochloric, and
phosphoric acid environments.
- Cost Efficiency: 30% lower pricing than European mills, leveraging Jiangsu’s
end-to-end production from steelmaking to precision forming.
- Rapid Lead Time: 10,000-ton annual capacity; 12-day delivery for ASTM
A790-certified orders from Qingdao or Houston hubs.
- Quality Assurance: 100% PMI testing, ultrasonic inspection (UT), and DNV-GL
certification for offshore/onshore projects.
- Custom Fabrication: Beveled ends, clad welding (Hastelloy C276), and anti-corrosion
coatings tailored to plant specifications.
4. Key Applications
- Chemical Reactors: High-pressure piping for sulfuric acid concentration, nitric acid
dilution, and chlor-alkali processing.
- Oil & Gas: Sour gas pipelines, offshore injection lines, and separator
vessels in H₂S-rich environments.
- Heat Exchangers: Shell-and-tube systems for aggressive media in fertilizer and
petrochemical plants.
- Waste Treatment: Acid recovery lines, scrubber ducts, and effluent neutralization
systems.
Jiangsu China Steel Union Industrial Co., Ltd delivers ASTM A790-certified Duplex 2205 pipes that redefine
reliability in corrosive, high-pressure industrial systems,
empowering global clients to achieve operational safety and cost
efficiency in the harshest chemical environments.
FAQ
Q1. Where is your factory ?

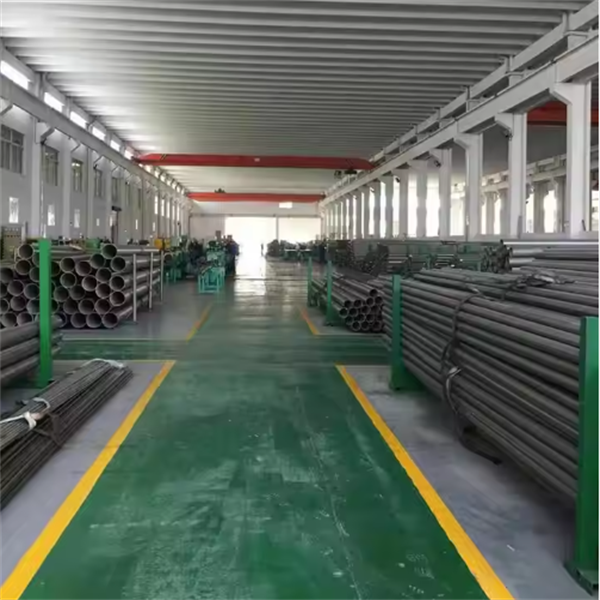

A1: Our company's processing center is located in Wuxi, Jiangsu,
China.
Which is well equipped with kinds of machines, such as laser
cutting machine,mirror polishing machine and so on.We can provide a
wide range of personalized services according to the customers'
needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil,
round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party
Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more
competitive prices and best after-dales service than other
stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, , UK,
Kuwait, Egypt, , Turkey, Jordan,
India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
